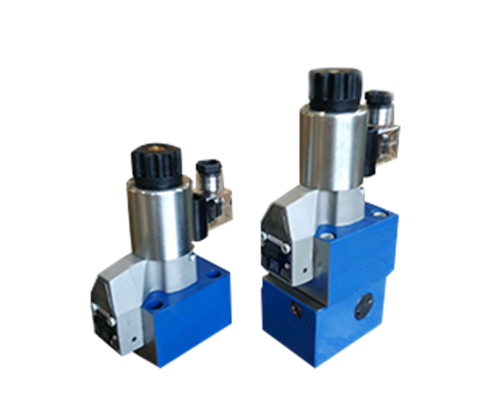

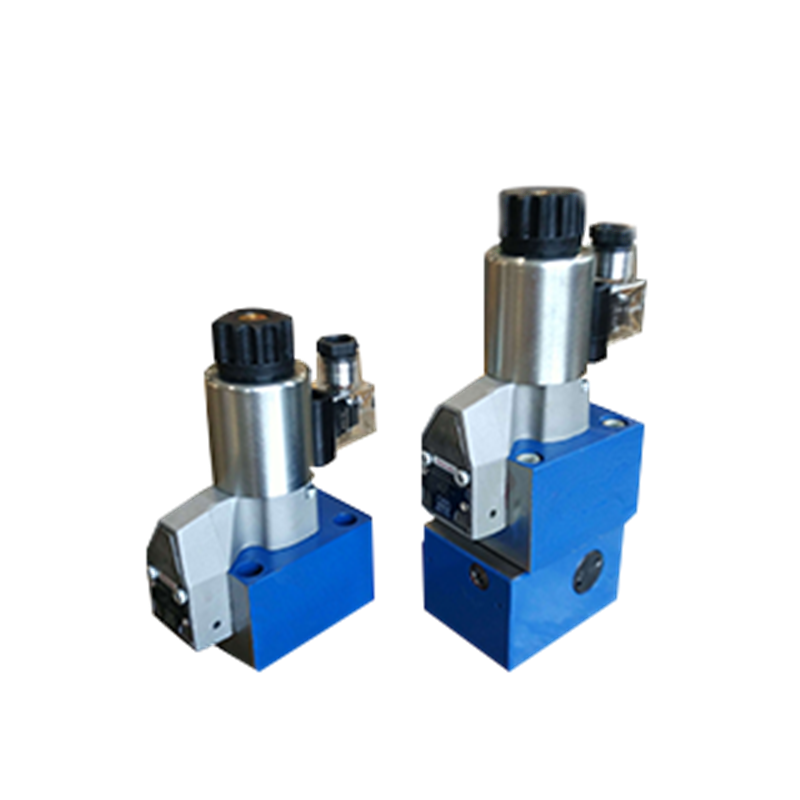

1、Direct-acting electromagnetic directional stop valve
2、the mounting surface is DIN24340 A ISO 4401 and CETOP-RP 121H
3、No leakage
4、Flexible switching is ensured under high voltage condition
5、When changing the coil, it can be operated under pressure ，the electromagnet coil can rotate 90.
6、with manual emergency operation
| Installation position | Optional | |||
| Environment temperature | ℃ | -30 to +50 (NBR seal) | ||
| -20 to +50 (FKM seal) | ||||
| Weight | Two two-way Solenoidic directional valve | Kg | 1.5 | |
| Two three-way Solenoidic directional valve | Kg | 1.5 | ||
| Two four-way Solenoidic directional valve | Kg | 2.3 | ||
| Max operation pressure | Port P, A, B | bar | 420 | |
| Port T | 100 | |||
| Max flow | L/min | 25 | ||
| Fluid | Mineral oil suitable for NBR and FKM seal | |||
| Phosphate ester for FKM seal | ||||
| Fluid temperature range | ℃ | -30 to +50 (NBR seal) | ||
| -20 to +50 (FKM seal) | ||||
| Viscosity range | mm2/s | 2.8 to 500 | ||
| Degree of contamination | Maximum permissible degree of fluid contamination: Class 9. NAS 1638 or 20/18/15, ISO4406 | |||
| Voltage type | DC | AC | |||||||||||
| Available voltage | V | 12, 24, 110, 205, 220 | 110, 220 (Only by Z5 rectifier plug ) | ||||||||||
| Allowed voltage (deviation) | % | +10～-15 | |||||||||||
| Required power | W | 30 | |||||||||||
| Continuous power-on time | % | 100 | |||||||||||
| Switching time in compliance with ISO 6403 | |||||||||||||
| Pressure bar | Flow L/min | DC | AC50HZ | ||||||||||
| on/ms (without oil tank pressure) | off/ms | on/ms (without oil tank pressure) | off/ms | ||||||||||
| U | C | D | Y | U, C | D, Y | U | C | D | Y | U, C | D, Y | ||
| 140 | 25 | 25 | 30 | 25 | 30 | 10 | 10 | 30 | 40 | 30 | 40 | 35 | 35 |
| 280 | 25 | 25 | 30 | 25 | 30 | 10 | 10 | 35 | 45 | 35 | 45 | 40 | 40 |
| 320 | 25 | 25 | 35 | 25 | 35 | 10 | 10 | 35 | 50 | 35 | 50 | 40 | 40 |
| 420 | 25 | 25 | 35 | 25 | 35 | 10 | 10 | 40 | 50 | 40 | 50 | 50 | 50 |
| Switching frequency | Time/h | Up to 15000 | |||||||||||
| IP rating as per DIN 40050 | IP65 | ||||||||||||
| Max coil temperature | ℃ | +150 | |||||||||||
