Three-Screw Pumps

Three-Screw Pumps

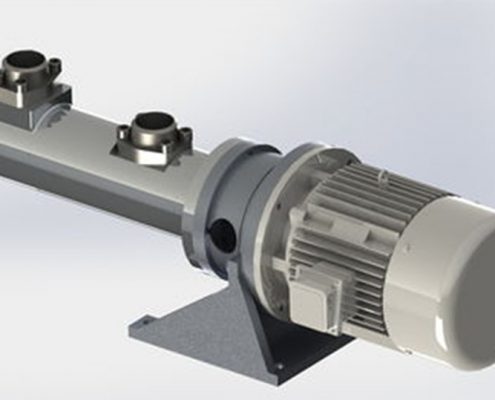

Three screw pump

Technical parameter

Shaft speed：300 – 3600rpm

Flow range: 0-6000L/Min

Connecting flange: GAS and SAE3000 flange

Outlet pressure: 40bar

Inlet pressure：From 0.7 to 3bar (10bar option)

Working temperature:- 20 ~ 180 ℃

Ambiente temperature：From -20 to +60℃

Application

Three screw pump has various structures, which can be used for horizontal, flange and vertical installation. Heating or cooling structures can also be provided according to the needs of the transported medium. Used as fuel injection, fuel supply and delivery pump in heating equipment. Used as hydraulic, lubricating and remote control motor pump in mechanical industry. Used as loading, conveying and liquid supply pump in chemical, petrochemical and food industries. It can be used as oil pumps for transportation, pressurization, fuel injection and lubrication on ships, and as pumps for marine hydraulic devices.

More Detail

Inquiry Form

Description

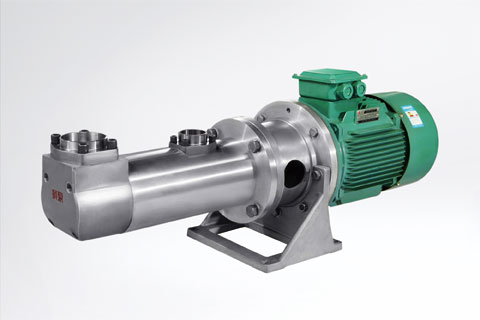

Three-screw pump

Product features:

Characteristics and advantages of three screw pump

(1) The pressure and flow range is wide, and the flow range is 0.2 ~ 320 m3/h, and the highest working pressure can reach 5 MPa;

(2) The type and viscosity range of the transported liquid are wide, and the viscosity range is 1mm2/s-760mm2/s;

(3) Because the inertia force of the rotating parts in the three screw pump is low, it is possible to use a high speed;

(4) Good inhalation performance and strong self-priming ability;

(5) Uniform and continuous flow, low vibration, low noise and almost no pulsation;

(6) three screw pump has solid structure, convenient installation and easy maintenance (horizontal, vertical, flange and plug-in);

(7) three screw pump has strong heat resistance, and the general working temperature is (1 ~ 250 C). If it exceeds this temperature, it needs to be specially made;

(8) Heating or cooling structures can also be provided according to the needs of the transported medium;

(9) There is almost no wear and tear in the three screw pump, and the three screw pump has a long service life as long as it is selected correctly.

(10) three screw pump has high work efficiency

Application industry:

– machinery industry

-chemical petroleum

-heating equipment

-Water treatment and sewage treatment

-Energy engineering

-food industry

-shipbuilding

Parameter information：
